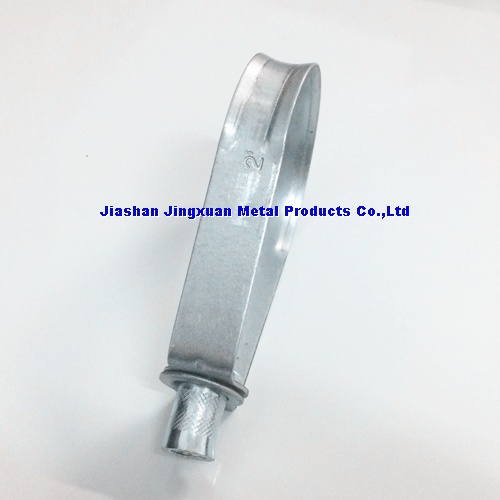

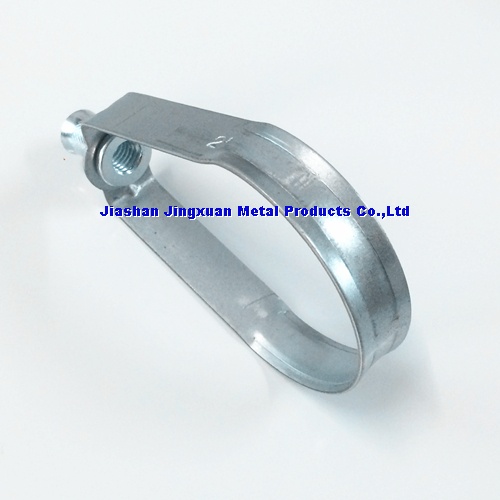

Loop Hangers,SPRINKLER CLAMP,Swivel Band Hangers,Swivel Ring Hangers

Loop Hangers,SPRINKLER CLAMP,Swivel Band Hangers,Swivel Ring Hangers Loop Hangers,SPRINKLER CLAMP,Swivel Band Hangers,Swivel Ring Hangers Loop Hangers,SPRINKLER CLAMP,Swivel Band Hangers,Swivel Ring Hangers
Product name : Loop Hangers,SPRINKLER CLAMP,Swivel Band Hangers,Swivel Ring Hangers Item : S
Swivel Ring Hangers
SPRINKLER CLAMP

Loop Hangerss
RIGID /IMC Conduit

SIZE: 1/2" TO 8"
EG/G
alvanized Steel
PIPE HANGER
ITEM description Pipe
Size
Dimensions
In
Dimensions
mm
ROD Size Width
mm
Thickness
mm
S-050 Loop Hanger 1/2" 0.840 21.336 3/8" 16.00 1.20
S-075 Loop Hanger 3/4" 1.050 26.670 3/8" 16.00 1.20
S-100 Loop Hanger 1" 1.315 33.401 3/8" 16.00 1.20
S-125 Loop Hanger 1-1/4" 1.660 42.164 3/8" 16.00 1.20
S-150 Loop Hanger 1-1/2" 1.900 48.260 3/8" 16.00 1.20
S-200 Loop Hanger 2" 2.375 60.325 3/8" 16.00 1.20
S-250 Loop Hanger 2-1/2" 2.875 73.025 3/8" 22.00 1.50
S-300 Loop Hanger 3" 3.500 88.900 3/8" 22.00 1.50
S-350 Loop Hanger 3-1/2" 4.000 101.600 3/8" 22.00 1.50
S-400 Loop Hanger 4" 4.500 114.300 3/8" 22.00 1.50
S-500 Loop Hanger 5" 5.562 141.275 1/2" 19.00 2.50
S-600 Loop Hanger 6" 6.625 168.275 1/2" 19.00 2.50
S-800 Loop Hanger 8" 8.625 219.075 1/2" 19.00 2.50


Loop Hangers,SPRINKLER CLAMP,Swivel Band Hangers,Swivel Ring Hangers
